Cabinet Door Moulding 3" - 49

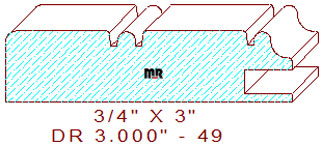

This lovely beaded cabinet door rail moulding 3" - 49 measures 3.000" wide by .750" thickness, permitting the detail to be machined out of four quarter lumber. The asymmetrical profile is composed of a 13/64" wide recessed half round bead joined to two 1/16" wide sunk fillets in the middle, flanked by a 1-7/64" wide line segment with a 1/8" eased outer edge on the left, the opposite side consists of another 1/16" sunk fillet merged with a 3/16" wide half-circle tangent to an 11/64" cove with a 3/64" eased edge above the dado for the panel. You may want to review and consider our matching drawer front for this design, door rail 1.500" - 8.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .500" (top knives).
