Cabinet Door Moulding 3" - 39

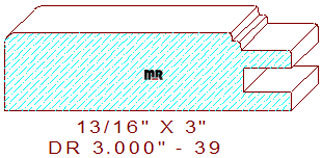

This shaker style cabinet door rail moulding 3" - 39 measures 3.000" wide by .812" thickness. The stepped profile is comprised of a 2-3/8" wide straight flat center with a 1/8" radius edge, connected to a 5/8" wide tiered portion consisting of two 3/32" wide by 3/32" deep steps with 3/64" radius edges, there is also .015" for sanding built into the design that won't interfere with the eased edges during that process.

You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful door rail pattern. Check out our updated tooling and supplies catalog for other high quality products we supply for your moulder and knife grinding room, all with reasonable pricing.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .406" (top knives).
