Cabinet Door Moulding 3" - 38

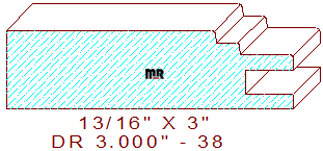

This stepped cabinet door rail moulding 3" - 38 measures 3.000" wide by .812" thickness, allowing the detail to be milled from four quarter lumber. The tiered profile is composed of a 2-3/16" wide straight line and a 1/8" vertical step with a 3/64" eased edge, connected to a 1/4" wide by 1/8" deep drop in elevation to a 9/64" wide line segment also with a 3/64" rounded edge.

Our high precision acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, Kentwood, Shop Fox or Williams & Hussey moulder, our cutters will mill flawlessly on them all.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .461" (top knives).
