Cabinet Door Moulding 3" - 35

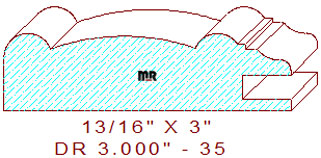

This attractive cabinet door rail molding 3" - 35 measures 3.000" wide by .812" thickness enabling the pattern to utilize four-quarter lumber for milling on an industrial-grade molder. The reeded design contains a 1/4" radius half-circle on the top left. The semicircular arc attaches to a 1-33/64" wide convex arch in the center that joins to an additional half bead with a 5/64" full by 3/64" deep perpendicular notch. This area merges to a 1/8" horizontal line with a 9/32" cove and a 7/64" eased edge on the right side of the design. In addition, we offer the matching drawer front of this pattern for your review and consideration, door rail 2.250" - 27.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing costs.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .500" (top cutters).
