Cabinet Door Moulding 3" - 3

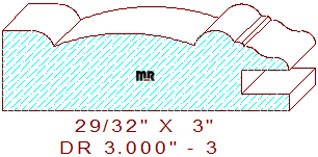

This stylish cabinet door moulding 3" - 3 measures 3.000" wide by .840" thickness, The attractive profile is comprised of a 2-1/8" radius arc in the center flanked by a 1/4" quarter-circle tangent off of a 5/16" straight line on the left side, the other side retains a 27/64" wide half circle attached to a small step and a wavelike bidirectional cyma reversa above the dado for the panel.

Learn how to become more efficient while searching over 15,000 profiles in our state of the art moulding catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .477" (top knives.)

Thickness = .840" / Depth of Cut = .500" (right blades).
