Cabinet Door Moulding 3" - 12

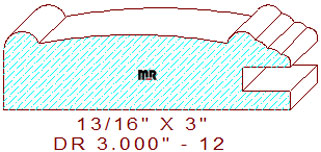

This beaded cabinet door rail molding 3" - 12 measures 3.000" wide by .813" thickness, allowing the use of four quarter lumber for machining on a commercial-grade molder. The beaded profile contains a recessed 5-5/16" radius arc in the center, flanked by a 3/16" radius bead on the outer edge and a 5/32" radius half round bead on the right, joined to three cascading quarter-circles above the dado. We offer a matching drawer front for this detail for your review and consideration, door rail 2.250" - 10.

We offer thousands of inspirational and compelling architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while reducing manufacturing costs.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .489" (top knives).
