Cabinet Door Moulding 3" - 11

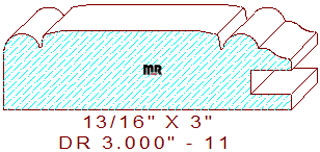

This double bead cabinet door rail molding 3" - 11, measures 3.000" wide by .812" thickness, enabling the detail to utilize four quarter lumber for milling on an industrial-grade molder. The attractive pattern contains a 3/8" full half-circle on the top left, connected to a 1/32" wide gap that joins to a 1-7/8" broad raised fillet in the center. The center joins an additional 3/8" half round bead and a small ogee with a 3/64" eased edge on the right side of the design. There is a slight .025" taper built into the top; this area is for sanding the profile after assembly to ensure the beads don't get flattened. We offer the matching door rail of this pattern for your review and consideration, door rail 1.875".

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing costs.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .500" (top cutters).
