Cabinet Door Moulding 3" - 105

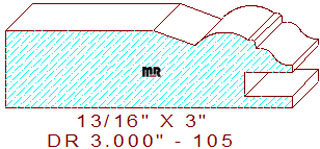

This modern cabinet door rail molding 3" - 105 measures 3.000" wide by .812" thickness, enabling the detail to be machined out of four quarter lumber. We offer a matching drawer front for this attractive design, you may want to review and consider drawer front 2.000" - 6. The innovative profile is composed of a 1-35/64" wide line segment on the left, connected to a twenty degree beveled line merged with a 13/32" semicircular arc in the center, attached to two tiny perpendicular lines that merge with a small ogee derived from a 5/32" radius arc and a 7/32" concave semicircle on the right side above the dado for the panel.

Whether you have a Weinig R960 profile grinder, or a CNC Technology template making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .367" (top knives).
