Cabinet Door Moulding 3" - 100

Cabinet Door Moulding 3" - 100

Cabinet Door Moulding 3" - 100

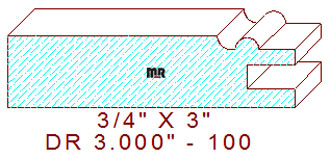

This cabinet door rail moulding 3" - 100 measures 3.000" wide by .750" thickness, permitting the detail to be machined out of four quarter lumber. The creative profile is comprised of a 2-3/16" wide horizontal fillet, connected to a 5/32" radius quarter round cove that transitions into a 1/4" wide half-circle, attached to a 3/8" wide sunk fillet located above the dado for the panel, this will leave a thickness dimension of .605" on the thin side of the design. We offer the matching drawer front for this pattern; you may want to review and consider drawer front 1.750" - 53.

Looking for that special pattern to enhance the architectural style of your current project, send us a sketch, custom profile design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .145" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
