Cabinet Door Moulding 2-15/16" - 5

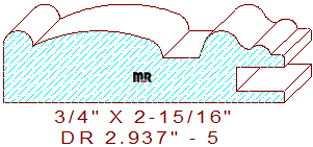

This embellished cabinet door rail molding 2-15/16" - 5 measures 2.937" wide by .750" thickness enabling the pattern to utilize four quarter lumber for milling on an industrial-grade molder. The highly detailed pattern contains a 1/4" radius half-circle on the top left. The bead joins a 1-23/64" broad two tangent radius elliptical-shaped convex arch with a 3/8" sunk fillet used for inserting a piece of rope molding in the center. Merged with an s-shaped curvature attached to a 7/32" half-bead and a 7/64" flat line with a 3/64" eased edge on the right side of the design. In addition, we offer the matching drawer front of this pattern for your review and consideration, door rail 2.250" - 28.

You will be able to manufacture high-speed steel or carbide molding knives literally within minutes after downloading this beautiful cabinet door rail pattern from the purchase DXF file link below. Take a moment to glance at our updated tooling and supplies catalog high-quality products we supply for your molder and knife grinding room. We offer competitive pricing and fast shipping options.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 2.937" / Depth of Cut = .415" (top cutters).
