Cabinet Door Moulding 2-29/32"

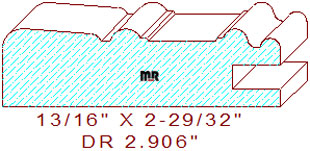

This beautiful cabinet door rail moulding 2-29/32" measures 2.906" wide by .812" thickness, allowing the pattern to be machined out of four quarter lumber. The attractive profile is comprised of a 13/64" eased outer edge on the left, tangent to a down-sloping tapered line with a 1/8" rounded inner edge, connected to a 7/64" wide sunk fillet that joins to a 5/16" wide half round bead with a small vertical step, attached to a 45/64" wide line segment in the center with a small upward step and a wave-like cyma reversa on the right side of the pattern.

You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful pattern from the purchase dxf file link below. Check out our updated tooling and supplies catalog for other high-quality products we supply for your moulder and knife grinding room, all with competitive pricing and fast shipping options.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.906" / Depth of Cut = .357" (top knives).
