Cabinet Door Moulding 2-3/4" - 9

Cabinet Door Moulding 2-3/4" - 9

Cabinet Door Moulding 2-3/4" - 9

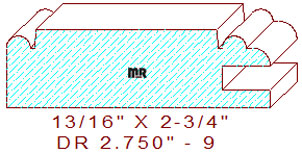

This Cabinet Door Rail Moulding 2-3/4" - 9 measures 2.750" wide by .812" thickness with a .468" depth of cut on the top horizontal set of moulding knives.

The beautiful detail is comprised of a 1-7/8" wide stepped fillet, flanked by a 1/16" wide quirk and 1/4" wide half circle on one side, the opposite side consists of a 1/16" wide sunk fillet and a 1/4" wide half-circle, with a 1/4" wide quarter-circle positioned above the dado where the panel fits in. The half-round beads are recessed below the flat top surface by 1/16" to allow for sanding without damaging the partial circles in the process.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Whether you own a recently built house or an older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
