Door Jamb 3/4" - 2
Door Jamb 3/4" - 2

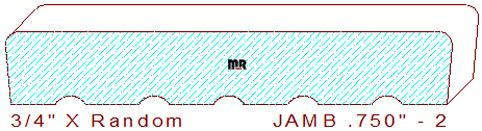

This 3/4" - 2 interior door jamb measures .750" in thickness; widths are adjustable to any desired size within the parameters of the machinery used to mill the lumber. The profile comprises two 9/64" radiuses on the side edges, and the pattern tapers back five degrees the remaining thickness of the design.
Try one of our 125% concentration ultimate CBN grinding wheels. Finish grinding at 3000 rpm with a twenty-degree back clearance angle will create a superior micro edge on all your high-speed steel profile knives. Read this article or watch the videos to help better understand how to align a borazon wheel to axial constant on a Weinig R960 profile grinder.
The present-day combined high-speed steel knives & template prices are listed below for quoting purposes.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.282
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.282
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$87.50
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$94.50
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$101.50
(Template not needed)
