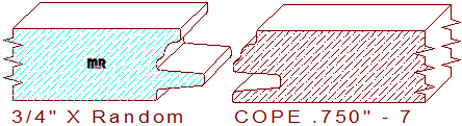

Door Cope & Stick 3/4" - 7

This cabinet door cope & stick 3/4" - 7 measures .750" thickness, allowing the pattern to be machined out of four-quarter lumber. The width can be milled to any desired size within the parameters of the machinery used to cut the detail. The attractive profile is composed of a 1/2" wide by 3/16" tall tongue and groove joint in the center, joined to a steep but short ogee with a 1/8" tall vertical fillet at the top of the design. There is a .006" void in the joint area for excess glue to escape from during construction of the male and female parts. Our professionally designed acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening.

Need this profile template and a set of moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high-speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras. There are thousands of compelling designs to help match your creative style.

For knife quoting purposes click to open the calculator below. We have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation of using the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart and place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .750" / Depth of Cut = .497" (male blades) & .500" (female cutters.)
