Door Cope & Stick 3/4" - 1

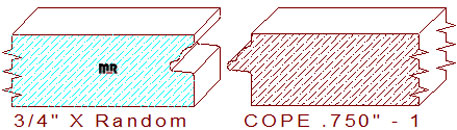

This cabinet door cope & stick 3/4" - 1 measures .750" thickness, permitting the design to be machined out of four-quarter lumber. The width can be milled to any desired size within the parameters of the machinery used to cut the detail. The beautiful, functional profile comprises a 23/64" vertical line segment on the bottom left, merged with a 1/4" deep ovolo derived from a 5/32" radius semicircle, joined to a 1/8" vertical line at the top of the design. A .006" void exists in the joint area for excess glue to escape from during construction of the male and female parts. Our professionally designed acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening.

All cad (computer aided design) files contain important moulder setup and grinding information all designed to help you save time and money in the production process. Thanks for allowing us to help enhance a home's marvelous architectural details, one astonishingly gorgeous profile at a time.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .750" / Depth of Cut = .247" (male blades) & .250" (female cutters.)
