Door Cope & Stick 2-1/4"

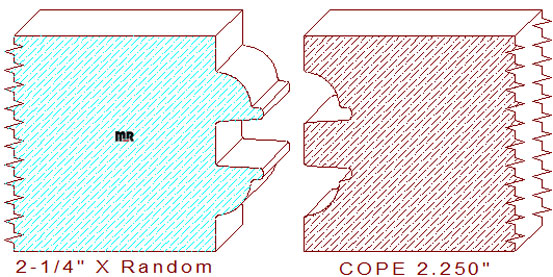

This ovolo door cope & stick moulding 2-1/4" measures 2.250" thickness, the width is machined to any desired size within the parameters of the shaper utilized to mill the pattern. The profile is composed of a 1/2" wide by 1/2" tall tongue and groove joint flanked by a 1/8" tall by 1/8" wide line, connected to a 3/8" quarter round bead with a 3/8" tall lines segment on the top and bottom of the design. The pattern is designed so it can be used on 1-3/4", 2" and 2-1/4" doors, a simple axial adjustment on the shaper will allow this to be accomplished. There is .008" of void in the joint to allow excess glue to escape when the male and female pieces are being assembled. The rough lumber blanks for this detail will probably be glued together from smaller thicknesses of lumber such as four quarter material, the wood will have greater stability and be less expensive to purchase.

Our high precision acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. All our innovative profiles have a proven unbroken cnc (computer numerical control) tool path expediting the production process.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 2.250" / Depth of Cut = .496" (male blades) & .500" (female cutters.)
