Door Cope & Stick 1-3/4" - 11

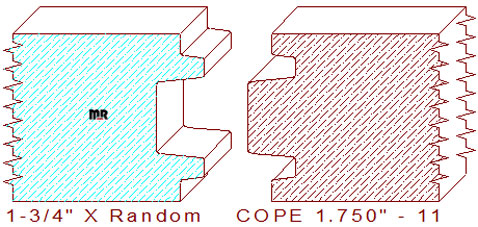

This interior door cope & stick 1-3/4" - 11 measures 1.750" thickness, allowing the detail to be machined out of eight-quarter lumber; the width is milled to any desired size within the shaper parameters used to cut the pattern. The custom profile is composed of a 3/4" wide by 1/2" deep tongue & groove in the center, joined to a 1/4" broad line segment with a 1/4" wide by 1/4" deep notch on both the top and bottom of the design. There is a.008" void in the joint area that creates a snug fit, this area also allows excess glue to escape from during assembly of the door.

Our high precision acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Homag molder, our cutters will mill flawlessly on them all.
