Crown Moulding 9-11/16"

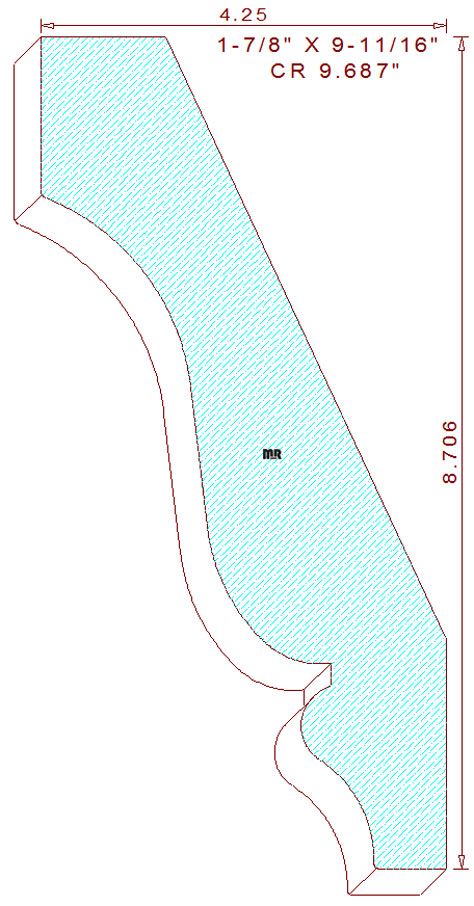

This large crown moulding measures 9-11/16" wide by 1-7/8" thickness, a twelve inch moulder will be required to manufacture this profile, the dxf file contains four patterns, right, left, top, and bottom. When installed height becomes 8-45/64" tall, with a projection of 4-1/4" wide, the spring angles are set at twenty-five and sixty-five degrees in order to create even hold down capabilities during the milling process.
