Crown Moulding 9-3/16" - 1

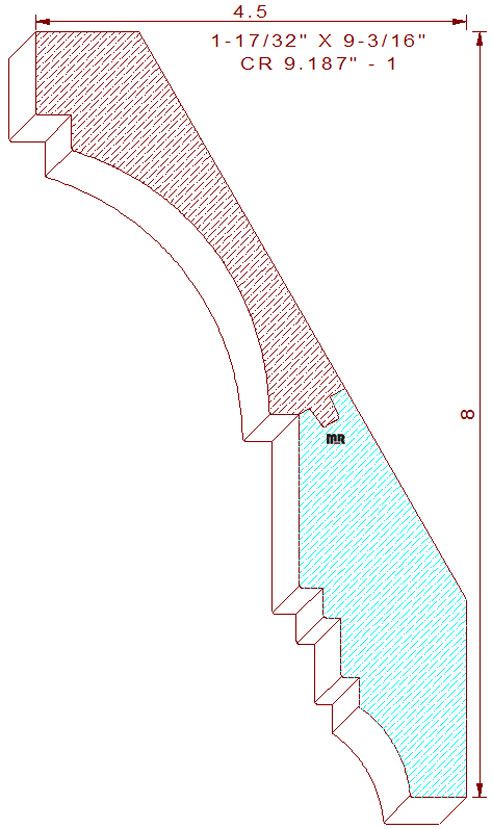

This Two Piece Crown Moulding 9-3/16" - 1 measures 9-3/16" wide by 1-17/32" thickness. The profile is composed of a combination of the following geometrical shapes, a square notched fillet on top, a cavetto, a series of stepped fillets and a covetto is positioned on the bottom. The profile is too large to be milled on a conventional nine inch moulder, it was designed in two pieces to save lumber cost, there are a total of seven templates included in the dxf file to manufacture this pattern.
