Crown Moulding 8-3/4" - 4

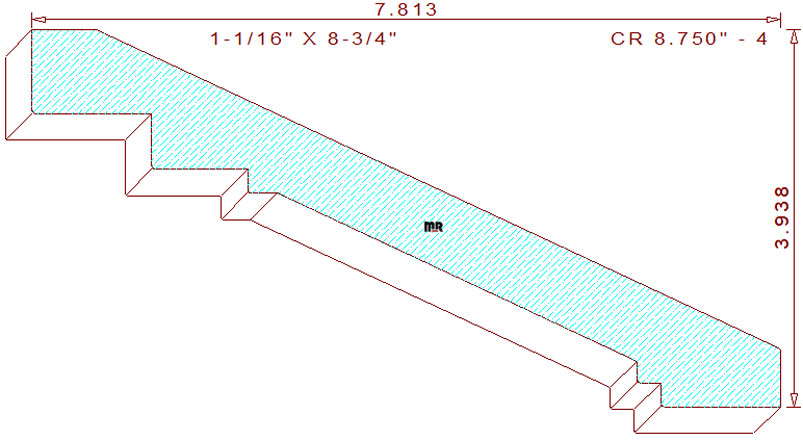

This huge stepped crown moulding 8-3/4" - 4 measures 8.750" width by 1.062" thickness, necessitating a 9" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The beautiful terminating profile comprises a 1-1/4" tall vertical line joined to a 1/4" by 1/4" notch with a 1/4" broad flat line on the upper left. The short line attaches to a 4-5/32" long splay face line connected to a 1/4" wide by 5/16" tall squared lines merged with a 1" tall and a 1-1/4" tall downsteps with a 7/8" flat line on the bottom right corner of the pattern. The spring angles get fixed at twenty-five and sixty-five degrees; the back cut designs are included in the downloadable DXF file available for purchase below. These precise back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the height position at 3-15/16" tall with a 7-13/16" projection across the top.

Custom-made elegance is a phrase used to define thousands of our moulding profile's beauty, style, and artisanship. Suppose you own a recently built house or older dated residence. In that case, we have the professional ability, knowledge, and experience to create visually stunning details to complement the architectural design of your elegant home and office.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 8.750" / Depth of Cut = .980" (top knives).

Thickness = 1.062" / Depth of Cut = .375" (right blades) & .750" (left cutters).
