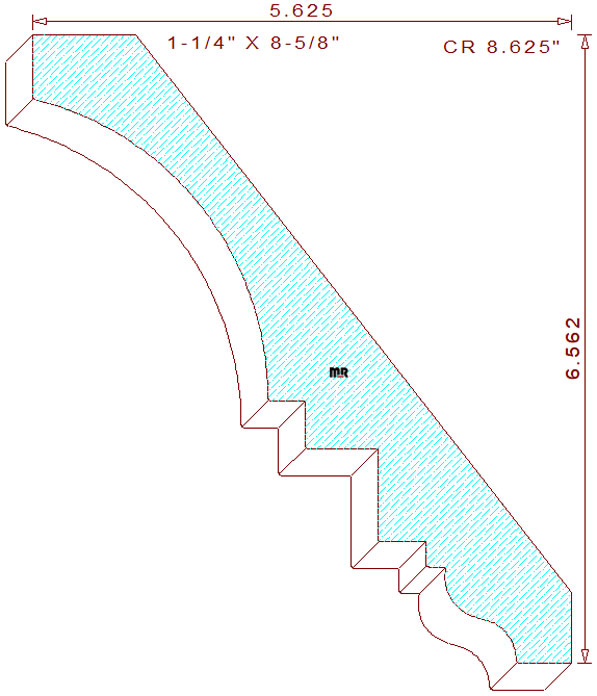

Crown Mould 8-5/8"

This elaborate 8-5/8" crown mould measures 8.634" width by 1.250" thickness, requiring an 8-7/8" wide blank of six-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The sophisticated terminating profile comprises a 43/64" tall line joined to a 2-13/64" cove on the upper left. The concave semicircle attaches to three different-sized notches with three vertical and four horizontal line segments in the center. The remaining portion of the pattern composes a two tangent radius ogee made from 7/16" semicircles joined with a 9/16" flat line on the bottom right corner. The fixed spring angles are at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed, in addition to locking in the height at 6-9/16" tall with a 5-5/8" projection across the top.

Mirror Reflections has over thirty-five years of experience in designing and manufacturing meticulous CAD drawings, acrylic templates, and profile knives available within the woodworking industry. Encounter our excellent customer service with affordable pricing by allowing us to demonstrate our abilities; you will be pleasantly impressed with our services.
