Crown 8-1/2" - 1

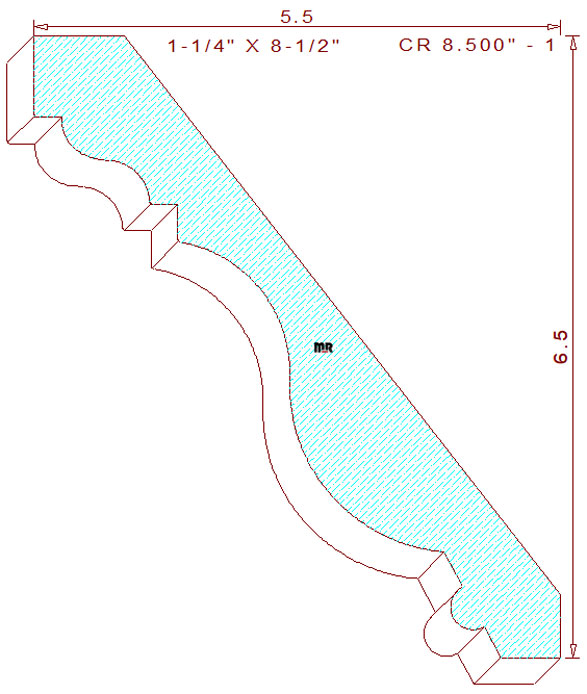

This beautifully ornate 8-1/2" - 1 crown mould measures 8.500" wide by 1.250" thickness, allowing the detail to be milled sprung (laying horizontally flat) out of six-quarter lumber. The gorgeous profile is composed of a 27/32" tall by 7/32" wide squared lines at the top, connected to a two tangent radius cyma reversa with a 19/64" wide by 25/64" tall notch that merges with a two tangent radius cyma recta in the center, joined to a 31/64" wide half round bead flanked by small line segments with a 5/8" wide horizontal line at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 6-1/2" tall with a projection of 5-1/2" wide.

Ever wonder why certain species of lumber have tear-out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives. Purchasing 12/20 duel angle cutter heads will save substantial money when investing in this style of tooling.
