Crown 8-1/4" - 3

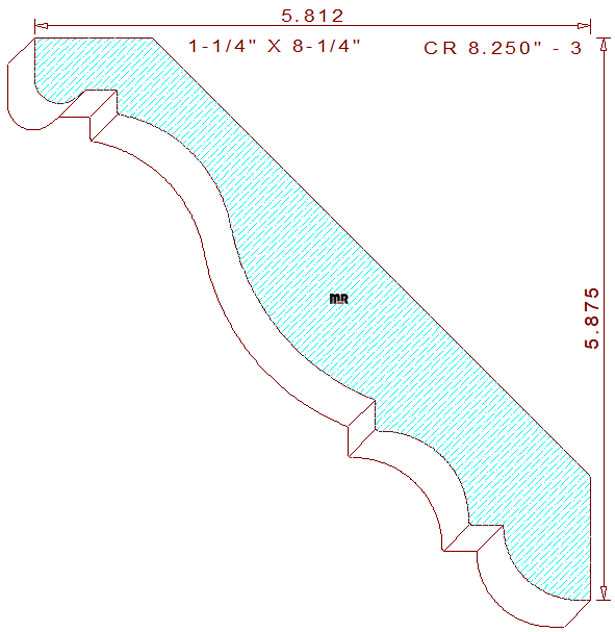

This fancy 8-1/4" - 3 custom crown mould measures 8.264" width by 1.250" thickness, requiring the use of six-quarter lumber for milling on a commercial-grade molder. The distinctive terminating profile contains a 17/64" half circle, joined to a 21/64" wide by 7/32" deep notch on the upper left side. The perpendicular lines join a free-flowing two-tangent radius cyma recta in the center. The s-shaped curvature merges with a 5/16" vertical line attached to a 15/16" cove with a 23/64" flat segment and a 25/32" quarter-round arc on the bottom's right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-7/8" tall with a projection of 5-13/16" across the top.
