Crown 8-1/4" - 2
Crown 8-1/4" - 2

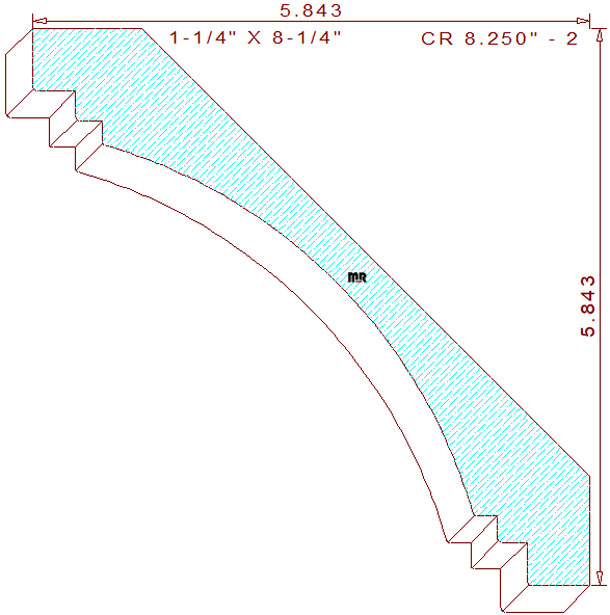

This southwestern 8-1/4" - 2 crown mould measures 8.250" width by 1.250" thickness, necessitating the use of six-quarter lumber for milling on a commercial molder. The stylish symmetrical supporting profile contains a 21/32" tall by 29/64" broad perpendicular lines on both the upper and lower corners, connected to a 5/16" & 1/4" steps that merge with a 5-41/64" concave semicircular arc in the center. The set spring angles are at
forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-27/32" tall with a projection of 5-27/32" across the top.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.806
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.806
Top Cutter Head
Width: 8.250
Depth of Cut: 0.813
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.25
(Template not needed)
