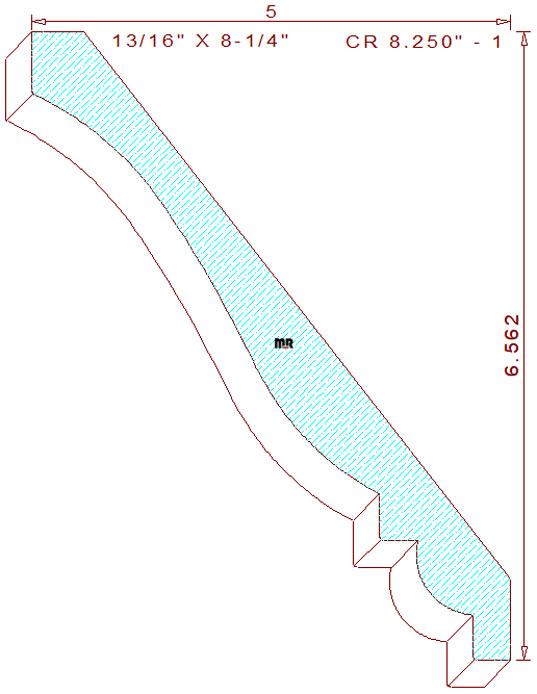

Crown 8-1/4" - 1

This decorative 8-1/4" - 1crown mould measures 8.249" width by .813" thickness enabling the use of four-quarter lumber for machining on an industrial-grade molder. The graceful terminating profile contains a 21/32" vertical line segment on the top left. The tall line joins three tangent radiuses, creating the free-flowing cyma recta in the center. The s-shaped curvature merges with a 13/32" tall by 31/64" wide perpendicular notch that transitions into a 5/8" quarter round with a 15/32" tall by 25/64" wide right angle on the bottom right side of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 6-9/16" tall with a projection of 5" across the top.
