Crown Moulding 8" - 6

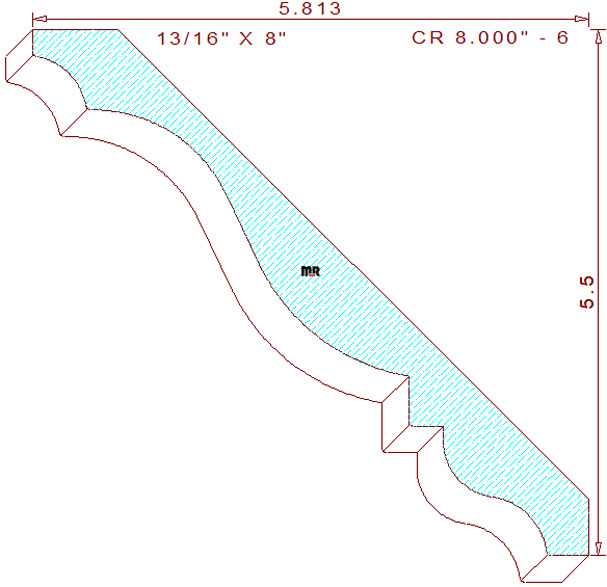

This awe inspiring crown moulding 8" - 6 measures 8.000" wide by .813" thickness, permitting the pattern to be machined sprung (laying horizontally flat) out of four quarter lumber. The stupendous terminating profile is composed of a 17/64" vertical fillet joined to a 41/64" cove on the top left, connected to a dignified two tangent radius cyma recta with a 33/64" tall by 23/64" wide perpendicular line in the center, attached to a graceful two tangent radius cyma reversa with a 7/16" wide horizontal line segment on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, in addition to setting the positioned height at 5-1/2" tall with a projection of 5-13/16" wide.

Architects, interior designers, contractors, lumber mills, cabinet shops and molding manufacturers have been utilizing our vast variety of moulding designs for years, we trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing cost.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 8.000" / Depth of Cut = .487" (top knives).

Thickness = .812" / Depth of Cut = .634" (right blades) & .414" (left cutters).
