Crown Moulding 8" - 21

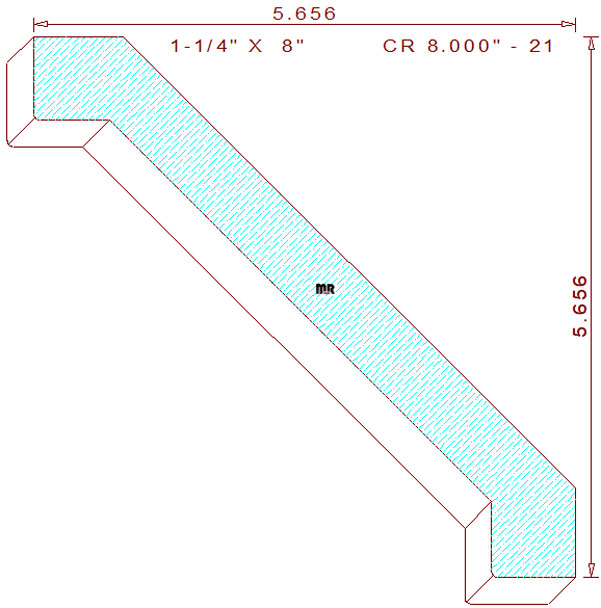

This large shaker style crown moulding 8" - 21 measures 8.000" wide by 1.250" thickness, enabling the pattern to be milled sprung (laying horizontally flat) out of six quarter lumber. The beautiful terminating profile is composed of a 7/8" tall vertical line perpendicular to a 25/32" horizontal fillet with a 1/16" radius point on the top left, connected to a 5-41/64" long splay faced bevel section in the center, joined to a 25/32" vertical fillet perpendicular to a 7/8" horizontal line with a 1/16" radius point on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner portion of the profile parallel to the wall and ceiling when installed, in addition to setting the positioned height at 5-21/32" tall with a projection of 5-21/32" wide.

Mirror Reflections offers thousands of inspirational and compelling architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 8.000" / Depth of Cut = .682" (top knives).

Thickness = 1.250" / Depth of Cut = .682" (right blades) & .682" (left cutters).
