Crown Moulding 8" - 19

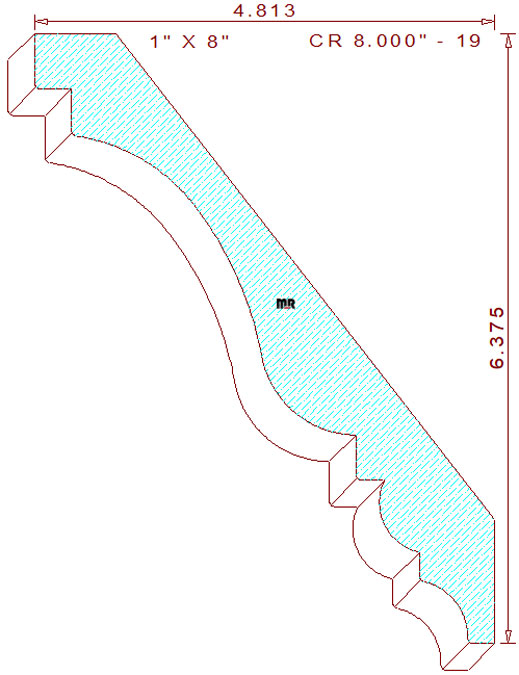

This ornate crown moulding 8" - 19 measures 7.986" wide by 1.000" thickness, enabling the pattern to be milled sprung (laying horizontally flat) out of five quarter lumber. The embellished terminating profile is composed of a 37/64" vertical fillet joined to a 25/64" wide by 15/32" tall notch on the top left, connected to a beautiful three tangent radius cyma recta and a 19/64" wide by 15/32" tall perpendicular lines in the center, attached to a decorative 3/4" high convex semicircular arc merged with a 9/32" vertical fillet and a 37/64" cove with a 9/32" wide line segment on the bottom right side of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner section of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 6-3/8" tall with a projection of 4-13/16" wide.

Increase search efficiency while looking over 15,000 profile designs in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 8.000" / Depth of Cut = .543" (top knives).

Thickness = 1.000" / Depth of Cut = .522" (right blades) & 1.025" (left cutters).
