Crown Moulding 8" - 18

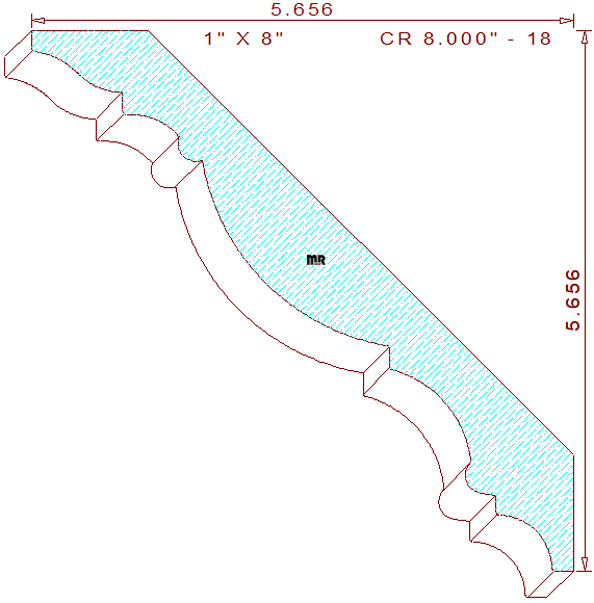

This elaborate crown moulding 8" - 18 measures 8.000" wide by 1.000" thickness, authorizing the pattern to be milled sprung (laying horizontally flat) out of five quarter lumber. The stunning terminating profile is composed of a 7/32" vertical fillet, joined to a small ogee with a 15/64" vertical line segment that merges with a 41/64" cove and a 11/32" half round bead on the top left, attached to a decorative 2-23/64" convex semicircular arc, connected to a 1/4" tall line segment and a 1-1/8" cavetto in the center, attached to an 11/32" wide rectangular shaped bead, joined to a 7/32" vertical line and a 9/16" cove with a 7/32" horizontal fillet on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner portion of the profile parallel to the wall and ceiling when installed, in addition to setting the positioned height and projection at identical dimensions of 5-21/32" tall & wide.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create visually stunning molding profiles that will complement the architectural decor of your elegant home or office.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 8.000" / Depth of Cut = .443" (top knives).

Thickness = 1.000" / Depth of Cut = .859" (right blades) & .859" (left cutters).
