Crown Moulding 8" - 17

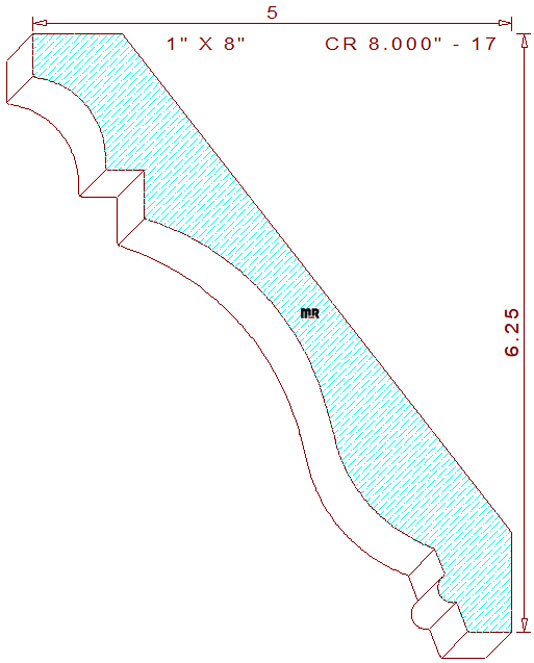

This fancy crown moulding 8" - 17 measures 8.000" wide by 1.000" thickness, enabling the pattern to be milled sprung (laying horizontally flat) out of five quarter lumber. The elaborate terminating profile is comprised of a 29/64" vertical fillet joined to a 53/64" cove and a 25/64" wide by 1/2" tall perpendicular notch on the top left, connected to a smooth and fluent two tangent radius cyma recta in the center, attached to a 5/16" wide half round bead flanked by small angled line segments with a 15/32" wide horizontal fillet on the bottom right side of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner section of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 6-1/4" tall with a projection of 5" wide.

We offer a small group of this particular profile design in many different widths, here are just a few you may want to review and consider, crown moulding 5.750" - 16 and crown 4.750" - 2. Be sure to check out a few other profile designs for different rooms in your beautiful home or office, our moulding catalog has over a fifteen thousand profiles to select from. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom knife profiles.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 8.000" / Depth of Cut = .500" (top knives).

Thickness = 1.000" / Depth of Cut = .576" (right blades) & .823" (left cutters).
