Crown Moulding 8" - 15

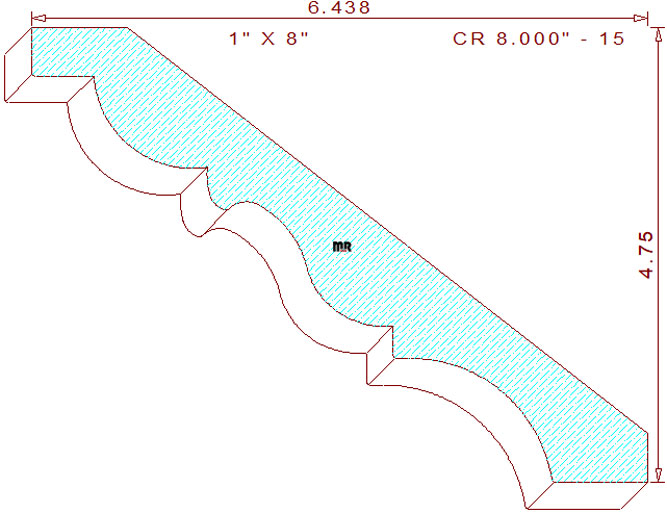

This gorgeous crown moulding 8" - 15 measures 8.000" wide by 1.000" thickness, allowing the pattern to be machined sprung (laying horizontally flat) out of five quarter lumber. The distinctive supporting profile is comprised of a 1/2" tall by 21/32" wide perpendicular lines joined to a 1-1/32" semicircular convex arc, creating the ovolo on the top left, connected to a beak shaped curvature that transitions into a beautifully graceful two tangent radius cyma recta with a 21/64" vertical fillet in the center, attached to a 1-1/2" cove with a one inch wide horizontal line segment on the bottom right side of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner section of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 4-3/4" tall with a projection of 6-7/16" wide.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create visually stunning molding profiles that will complement the architectural decor of your elegant home or office.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 8.000" / Depth of Cut = .685" (top knives).

Thickness = 1.000" / Depth of Cut = .399" (right blades) & .620" (left cutters).
