Crown Moulding 8" - 12

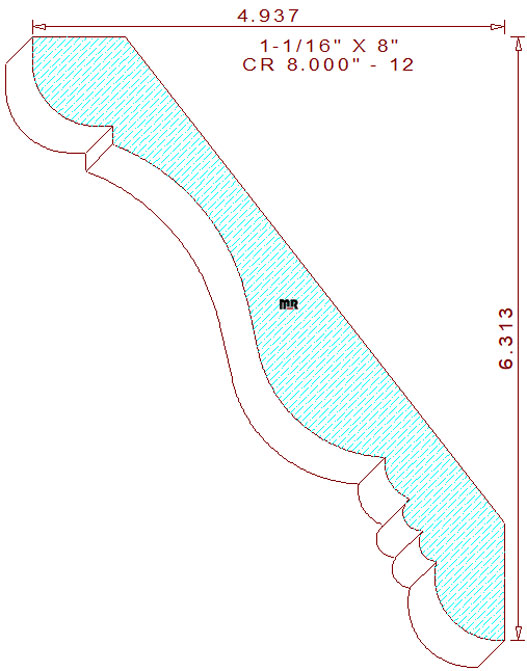

This beautiful custom crown moulding 8" - 12 measures 8.014" wide by 1.062" thickness, authorizing the pattern to be machined sprung (laying horizontally flat) out of five quarter lumber. The captivating supporting profile is composed of a 43/64" convex quarter round circle with a 3/16" vertical fillet on the top left, connected to a lovely two tangent radius cyma recta in the center, merged with a series of three cascading semicircular arcs with a 43/64" quarter round bead on the bottom right side of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner section of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 6-5/16" tall with a projection of 4-15/16" wide.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 8.000" / Depth of Cut = .593" (top knives).

Thickness = 1.062" / Depth of Cut = .596" (right blades) & .971" (left cutters).
