Crown Moulding 7-7/8" - 2

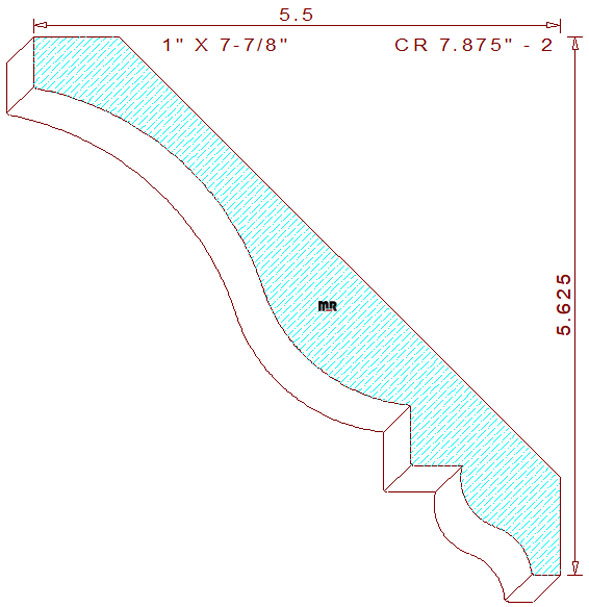

This prestigious crown moulding 7-7/8" - 2 measures 7.867" width by one-inch thickness, allowing the use of a 8-1/8" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The distinguished pattern composes a 35/64" vertical line segment on the top left. The short line attaches to a gracefully recessed (.015") two tangent radius cyma recta in the center. The lower portion consists of a 5/8" tall by 35/64" wide perpendicular line merged with a lovely ogee and a 5/16" flat line on the pattern's bottom right side. The set spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the design parallel to the wall and ceiling after installation. These specific angles lock in the height at 5-5/8" tall with a 5-1/2" projection across the top.

Look for a few other profile designs for different rooms in your beautiful, stylish home, with over 15,000 patterns in our search by size molding catalog there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 7.875" / Depth of Cut = .541" (top knives).

Thickness = 1.000" / Depth of Cut = .630" (right blades) & .719" (left cutters).
