Crown Moulding 7-3/4" - 3

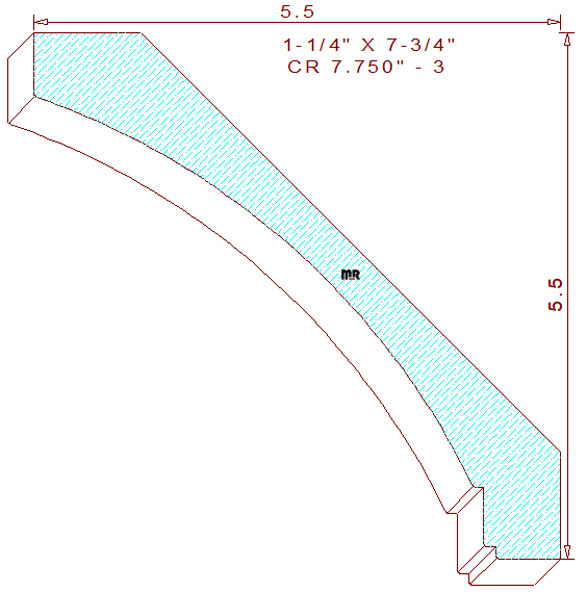

This beautiful crown moulding 7-3/4" - 3 measures 7.778" wide by 1.250" thickness, allowing an eight-inch wide blank of six-quarter lumber for milling on a commercial moulder. The cove style profile contains a 43/64" vertical line segment on the top left. The line attaches to a 7-31/32" radius cove in the center, with a 1/8" by 5/8" and a 1/8" x 1/8" perpendicular notch and a 43/64" horizontal line on the design's bottom right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed. These specific angles lock in the height at 5" tall with a 5" projection across the top.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our molding designs. If you own a recently built house or older dated residence, we have the professional ability, knowledge, and experience to create and produce visually stunning details that will complement the architectural setting of your elegant home and office.

For knife quoting purposes, click on the calculator below; we supplied only the important measurements, place the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 7.750" / Depth of Cut = .797" (top knives).

Thickness = 1.250" / Depth of Cut = .786" (right cutters) & .786" (left blades).
