Crown Moulding 7-3/4"

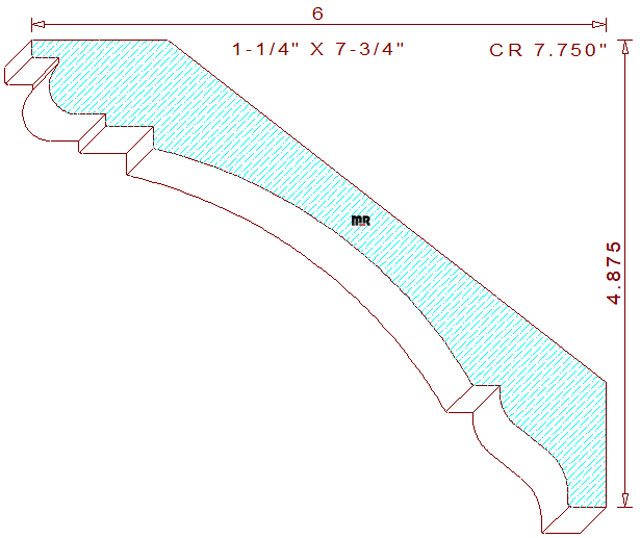

This gorgeous crown moulding 7-3/4" measures 7.729" wide by 1.250" thickness, necessitating an eight-inch wide blank of six-quarter lumber for milling on an industrial molder. The ornate profile contains a 3/16" tall by 9/32" wide perpendicular lines with a 3/64" sunk fillet on the top left. The short vertical line connects to a bullnose merged with a squared, and notched fillet joined to a 5-1/4" cove in the center. The remaining portion consists of a 5/16" horizontal line joined to a graceful two tangent radius ogee with a 13/32" horizontal line on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-7/8" tall with a 6" projection across the top.

You will be able to manufacture high-speed steel or carbide molding knives literally within minutes after downloading this beautiful pattern from the purchase DXF file link below. Take a moment to glance at our updated tooling and supplies catalog high-quality products we supply for your molder and knife grinding room. We offer competitive pricing and fast shipping options.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, place the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 7.750" / Depth of Cut = .750" (top knives).

Thickness = 1.250" / Depth of Cut = .796" (right cutters) & 1.115" (left blades).
