Crown Moulding 7-1/16" - 4

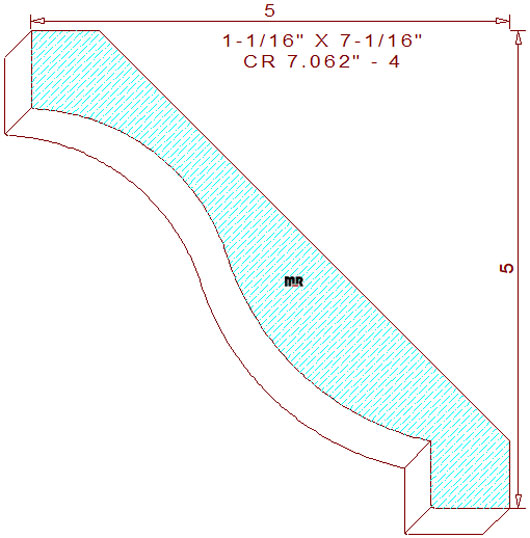

This traditional crown molding 7-1/16" - 4 measure 7.071" width by 1.062" thickness, necessitating the use of a 7-5/16" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The long-established profile comprises a 13/16" tall vertical line segment on the top left. The straight line attaches to a 2-7/32" radius concave semicircle tangent to a 2-7/8" convex arc forming the cyma recta in the center. The s-shaped curvature connects to an 11/16" tall by 13/16" wide perpendicular lines on the design's bottom right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height & projection at an identical five inches tall and wide.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that special profile to enhance the architectural style of your client's home or office. Be sure to download all our free Dxf files; see how easy the services we provide can increase productivity and reduce your manufacturing cost.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.062" / Depth of Cut = .657" (top knives).

Thickness = 1.062" / Depth of Cut = .499" (right blades) & .499" (left cutters).
