Crown Moulding 7" - 9

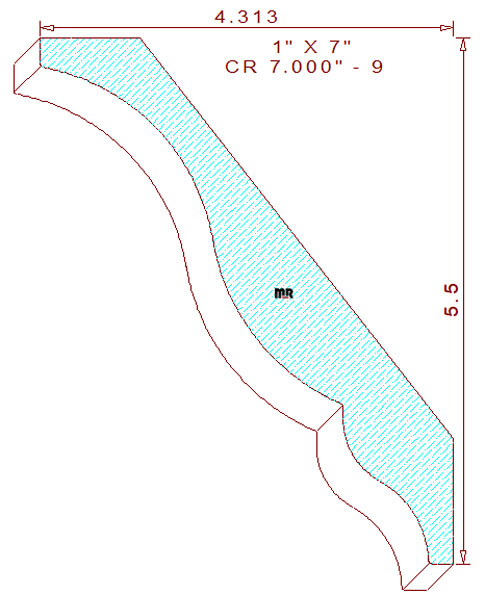

This sumptuous crown molding 7" - 9 measures 6.990" width by 1.000" thickness requiring the use of five quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The free-flowing terminating profile contains a 5/16" vertical line segment on the top left. The short line connects to a 2-13/64" concave semicircle tangent to a 2-19/64" radius convex arc forming the center's cyma recta. The lower portion retains a 3/4" radius convex arc tangent to a one-inch concave semicircle creating a cyma reversa with a 17/64" flat line on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-1/2" tall with a projection of 4-5/16" across the top.

Increase search efficiency while looking over 15,000 profile designs in our state-of-the-art molding catalog. Watch the short video on the first page of our catalog to find design ideas for your next woodworking project. We're sure you will locate the perfect embellished pattern to enhance your beautiful home or office's architectural style.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .561" (top knives).

Thickness = 1.000" / Depth of Cut = .644" (right blades) & 1.039" (left cutters).
