Crown Moulding 7" - 8

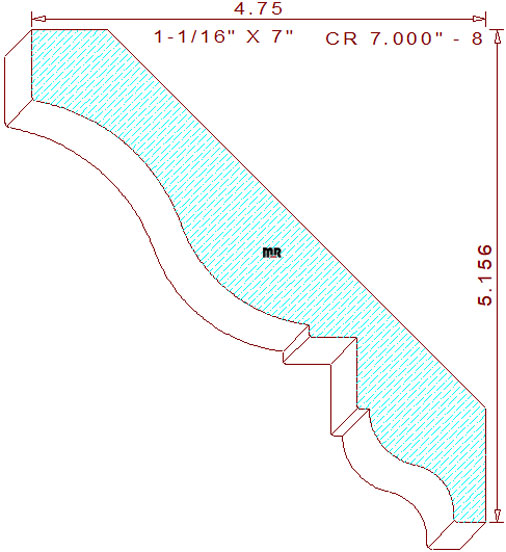

This special crown molding 7.000" - 8 measures 7.004" width by 1.063" thickness, requiring the use of five quarter lumber for milling sprung (laying horizontally flat) on a commercial-grade molder. The fantastic terminating profile contains a 3/4" tall vertical fillet on the top left. The line segment connects to a two-inch radius concave semicircle tangent to a 1-5/8" convex arc creating the cyma recta in the center. The lower portion of the pattern consists of a 1/8" vertical fillet, merged with a 3/4" tall by 1/2" wide perpendicular notch for inserting a piece of dentil or rope molding. The notch gets joined to a 1/8" horizontal fillet and a two tangent radius cyma reversa with an 11/32" broad line on the design's bottom right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-5/32" tall with a projection of 4-3/4" across the top.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years' experience in woodworking and a former Weinig molder/grinder field service technician. From just an idea in one's mind to reality in their beautiful home, our custom profiles reflect your imagination's creative style. Let us help you complement the architectural decor of any room with any one or more of our attractive molding patterns.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .625" (top knives).

Thickness = 1.062" / Depth of Cut = .558" (right blades) & .845" (left cutters).
