Crown Moulding 7" - 36

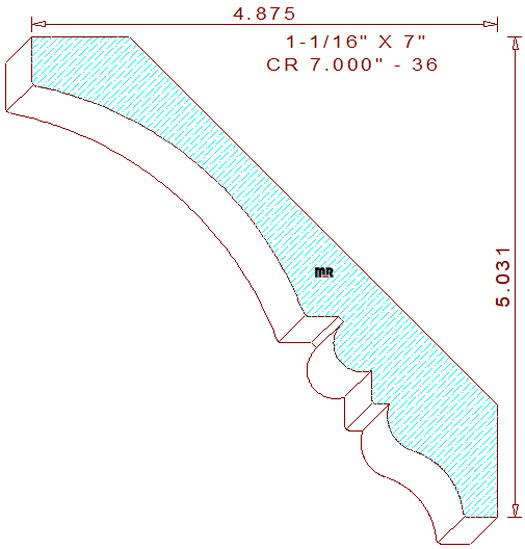

This concave crown molding 7" - 36 measures 7.000" width by 1.062" thickness requiring the use of five quarter lumber for machining on an industrial-grade molder. The scooped-out terminating profile contains a 17/32" vertical line segment joined to a 3-13/16" cavetto on the top center. The remaining portion of the design retains a horizontal line joined to a 5/64" sunk fillet merged with a half round bead with a perpendicular set of lines, connected to a two tangent radius ogee with a 23/64" wide flat line on the bottom right corner. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-1/32" tall with a projection of 4-7/8" across the top.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our molding designs. If you own a recently built house or older dated residence, we have the professional ability, knowledge, and experience to create and produce visually stunning details that will complement the architectural setting of your elegant home and office.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .640" (top knives).

Thickness = 1.062" / Depth of Cut = .717" (right blades) & .832" (left cutters).
