Crown Moulding 7" - 32

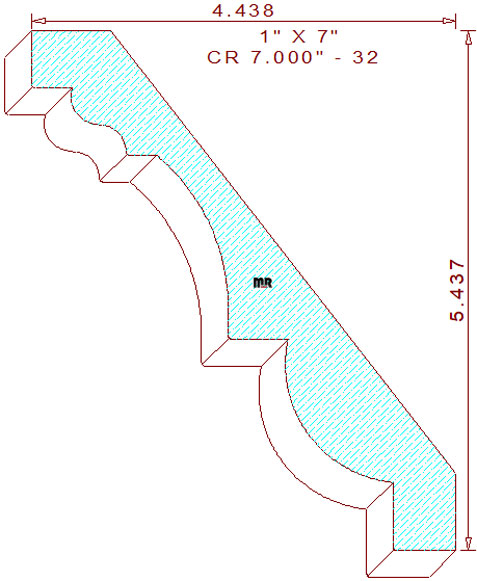

This distinguished crown molding 7" - 32 measures 7.017" width by 1.000" thickness authorizing the use of five quarter lumber for machining on an industrial-grade molder. The elegant terminating profile contains a 19/32" tall by 7/16" broad perpendicular lines on the top left. That right angle connects to a two tangent radius ogee, and a 5/16" broad flat line with a 2-1/16" concave arc merged with a 5/8" full-flat line in the center. The remaining portion consists of a 1-1/4" radius ovolo attached to a 9/32" tall by 21/32" wide squared lines on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-7/16" tall with a projection of 4-7/16" across the top.

Looking for that special molding to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our molding designs. If you own a recently built house or older dated residence, we have the professional ability, knowledge, and experience to create and produce visually stunning details that will complement the architectural setting of your elegant home and office.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .625" (top knives).

Thickness = 1.000" / Depth of Cut = .507" (right blades) & .638" (left cutters).
