Crown Moulding 7" - 28

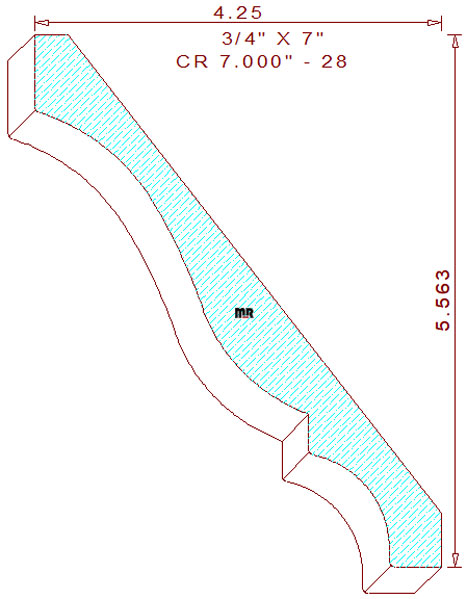

This classic crown moulding 7" - 28 measures 7.000" wide by .750" thickness, allowing the detail to be machined sprung (laying horizontally flat) out of four quarter lumber. The traditional profile is composed of a 13/16" tall vertical line on top, connected to a three tangent radius cyma recta with a 27/64" tall vertical line segment in the center, joined with a 1" radius cove and a 35/64" wide horizontal line at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 5-9/16" tall with a projection of 4-1/4" wide.

Become professionally efficient while searching over 15,000 mouldings in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 7.000" / Depth of Cut = .562" (top knives.)

Thickness = .750" / Depth of Cut = .213" (right blades) & .447" (left cutters.)
