Crown Moulding 7" - 27

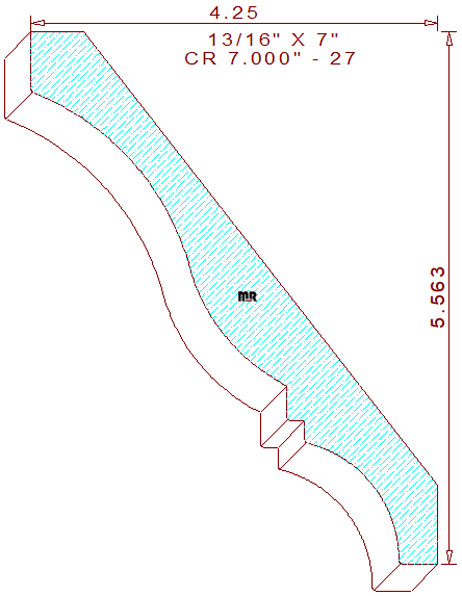

This special crown molding 7" - 27 measures 7.000" width by .813" thickness, enabling the use of four quarter lumber for milling sprung (laying horizontally flat) on an industrial-grade molder. The colonial-themed terminating profile contains a 5/8" tall vertical line on the top left. The line connects to a free-flowing two tangent radius cyma recta in the center. The lower portion of the design consists of a 23/64" tall by 3/16" deep perpendicular lines, joined to a 1-1/4" cove that's flanked by a 15/64" vertical line above and a 13/32" flat line on the bottom right corner of the pattern. The belly of the profile is recessed below the four hold-down points by .020", this will eliminate any burnish marks that may be caused by the pressure shoe on the machinery. The fixed spring angles were set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-9/16" tall with a projection of 4-1/4" across the top.

All cad (computer-aided design) files contain important moulder setup and grinding information all designed to help you save time and money in the production process. Thanks for allowing us to help enhance a home's exquisite architectural details, one astonishingly gorgeous profile at a time.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .451" (top knives).

Thickness = .813" / Depth of Cut = .339" (right blades) & .652" (left cutters).
