Crown Moulding 7" - 25

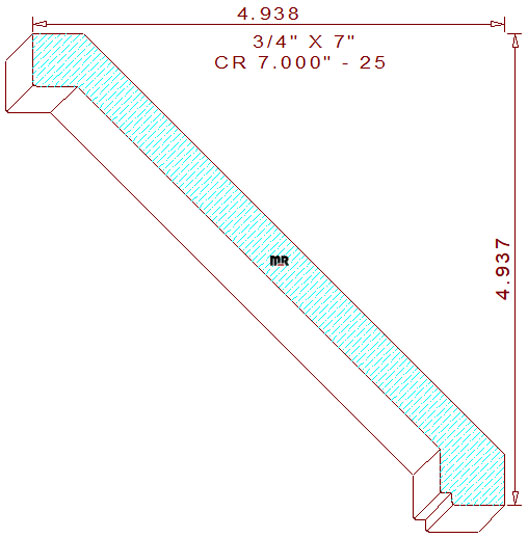

This beveled crown molding 7" - 25 measures 6.983" width by .750" thickness allowing the use of four quarter lumber for machining on an industrial-grade molder. The shaker style terminating profile contains a 9/16" tall vertical fillet joined to a 15/32" wide perpendicular lines on the top left. The squared lines connect to a 5-3/8" long forty-five-degree splay faced line in the center, merged to a 15/32" tall line, connected to a 1/8" by 1/8" notch with a 9/16" broad line on the bottom right corner of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-15/16" tall with a projection of 4-15/16" across the top.

Mirror Reflections offers thousands of inspirational and compelling architectural moldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download our free molding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

Looking for that special molding to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .471" (top knives).

Thickness = .750" / Depth of Cut = .377" (right blades) & .377" (left cutters).
