Crown Moulding 7" - 22

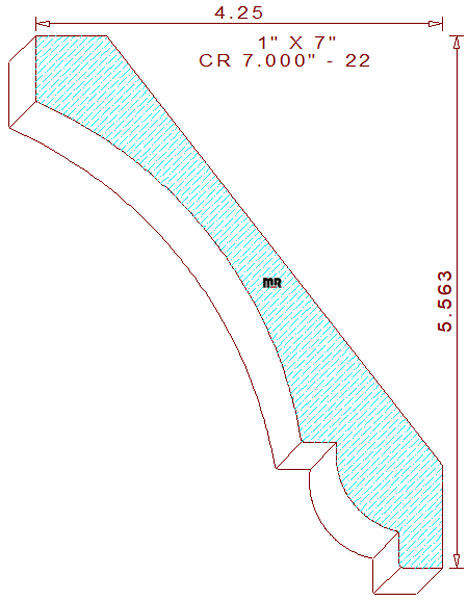

This charming crown molding 7" - 22 measures 7.000" width by 1.000" thickness authorizing the use of five quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The straightforward terminating profile contains an 11/16" vertical line segment on the top left. The tall fillet connects to a 4-3/4" radius cove in the center, joined to a 27/32" ovolo flanked by 3/8" horizontal & vertical fillets with a 29/64" broad line on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-9/16" tall with a projection of 4-1/4" across the top.

Utilize our enchanting patterns to create a stylish molding catalog for your millwork company, or, simply connect our catalog to your website, offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production cost spent on molding knife design. Let us help you in the remodel of that beautiful house in the transformation into an elegant home.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .461" (top knives).

Thickness = 1.000" / Depth of Cut = .455" (right blades) & .843" (left cutters).
