Crown Moulding 7" - 15

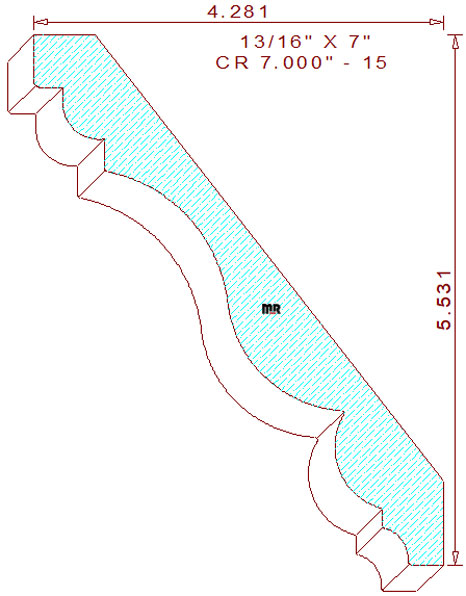

This distinguished crown molding 7" - 15 measures 7.000" width by .812" thickness permitting the use of four quarter lumber for machining sprung (laying horizontally flat) on an industrial molder. The custom terminating profile contains a 35/64" vertical by 5/16" wide perpendicular lines on the top left. These lines connect to a 25/64" convex semicircle with an 11/32" tall line merged to a graceful cyma recta in the center. The lower portion retains a 43/64" radius convex arc attached to a short vertical line and a 21/64" cove with a 3/8" flat line on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-17/32" tall with a projection of 4-9/32" across the top.

Do you need any supplies for your molder or tool room? Choose any of our quality high-speed knife steel or premium carbide, we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your molder and knife grinding room.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .438" (top knives).

Thickness = .812" / Depth of Cut = .391" (right blades) & .688" (left cutters).
