Crown Moulding 7" - 13

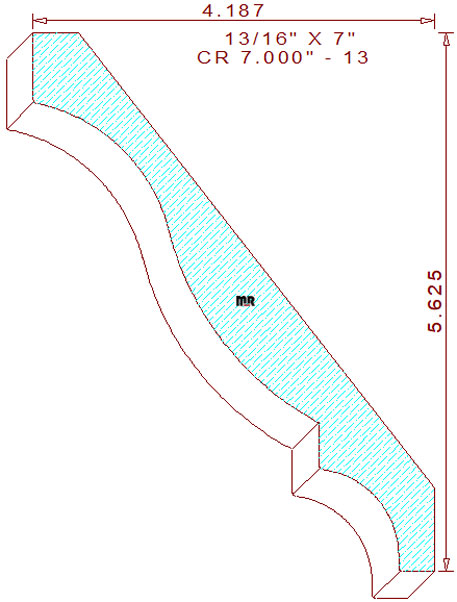

This conventional crown molding 7" - 13 measures 7.008" width by .813" thickness, allowing the use of four quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The colonial terminating profile contains a 47/64" tall vertical line on the top left connected to a free-flowing two tangent radius cyma recta in the center. The lower portion of the pattern consists of a 31/64" vertical fillet joined to a 29/32" cavetto with a 3/8" flat line on the design's bottom right corner. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-5/8" tall with a projection of 4-3/16" across the top.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that special profile to enhance the architectural style of your client's home or office. Be sure to download all our free dxf files; see how easy the services we provide can increase productivity and reduce your manufacturing cost.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .437" (top knives).

Thickness = .813" / Depth of Cut = .291" (right blades) & .686" (left cutters).
