Crown Moulding 7" - 1

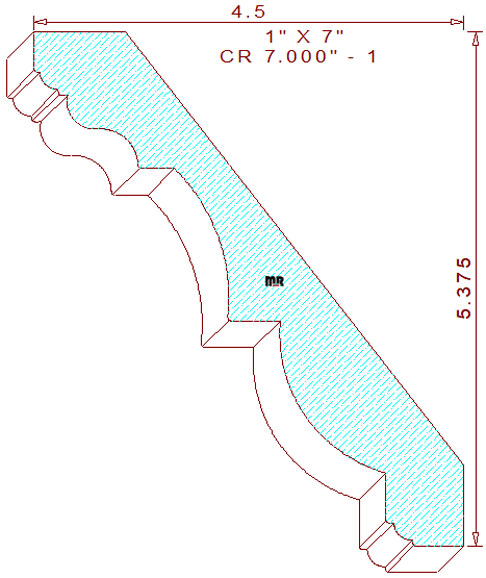

This elaborate crown moulding 7" - 1 measures 7.000" wide by 1.000" thickness, allowing the detail to be machined from five quarter lumber. The highly decorative ornate profile is composed of a wide range of geometrical shapes including vertical and horizontal line segments, ovolo, cyma reversa, coves and a large radius arc all coming together in this beautiful custom crown design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 5-3/8" tall with a projection of 4-1/2" wide.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 7.000" / Depth of Cut = .570" (top knives.)

Thickness = 1.000" / Depth of Cut = .593" (right blades) & .664" (left cutters.)
