Crown 6-15/16" - 1
Crown 6-15/16" - 1

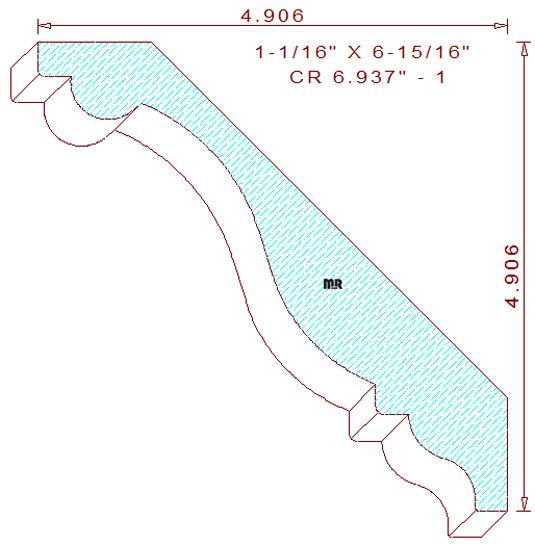

This attractive crown mould 6-15/16" - 1 measures 6.937" wide by 1.062" thick, the profile shape consists of a large cyma recta in the center with a step that transitions into an ogee at the bottom, the upper portion retains a half round bead and fillets. When installed, the height and projection are identical at 4-29/32" tall and wide, with the spring angles fixed at forty-five degrees. Three of the points in the design are purposely positioned on the same plane for optimal hold conditions during milling of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.837
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.837
Top Cutter Head
Width: 6.937
Depth of Cut: 0.700
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$473.47
Not Needed
Total:
$782.47
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$504.22
Not Needed
Total:
$832.22
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$550.34
Not Needed
Total:
$906.84
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
