Crown Moulding 6-7/8" - 5

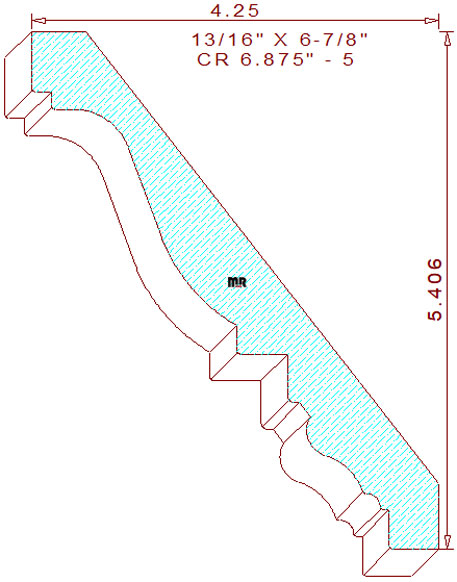

This beautifully ornate crown moulding 6-7/8" - 5 measures 6.875" wide by .813" thickness, permitting the detail to be cut out of four quarter lumber. The intricate profile is composed of a 5/8" tall vertical line joined to a 13/64" perpendicular notch on the top left, connected to a uniquely designed cyma recta and a 9/32" vertical line and another large square notch in the center, the lower section of the profile is comprised of many alternative geometrical shapes that really embellishes the overall appearance of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 5-13/32" tall with a projection of 4-1/4" wide.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.875" / Depth of Cut = .473" (top knives.)

Thickness = .813" / Depth of Cut = .346" (right blades) & .538" (left cutters.)
