Crown Moulding 6-7/8" - 3

Crown Moulding 6-7/8" - 3

Crown Moulding 6-7/8" - 3

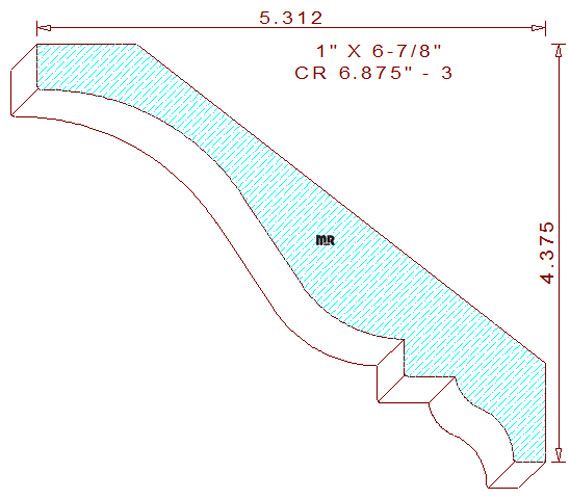

This Luxurious Crown Moulding 6-7/8" - 3 measures 6.875" wide by 1.000" thickness, the profile is composed of a slightly under 1/2" tall fillet on top, a cyma recta is positioned in the middle with an attached stepped fillet and ogee located on the bottom. When installed the height becomes roughly 4-3/8" tall with a projection of 5-5/16" wide with the spring angles fixed at thirty-eight and fifty-two degrees. Three points of the design are purposely positioned on the same level plane to assist in holding down the pattern while milling, the bead of the cyma recta is recessed by .020" to lessen the possibility of an unsightly burnish mark being left on the face of the moulding.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
